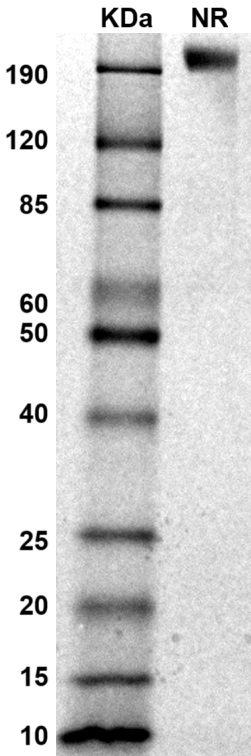

MW: Molecular Weight marker reduced condition NR: FGFR3 dimer under non-reduced condition

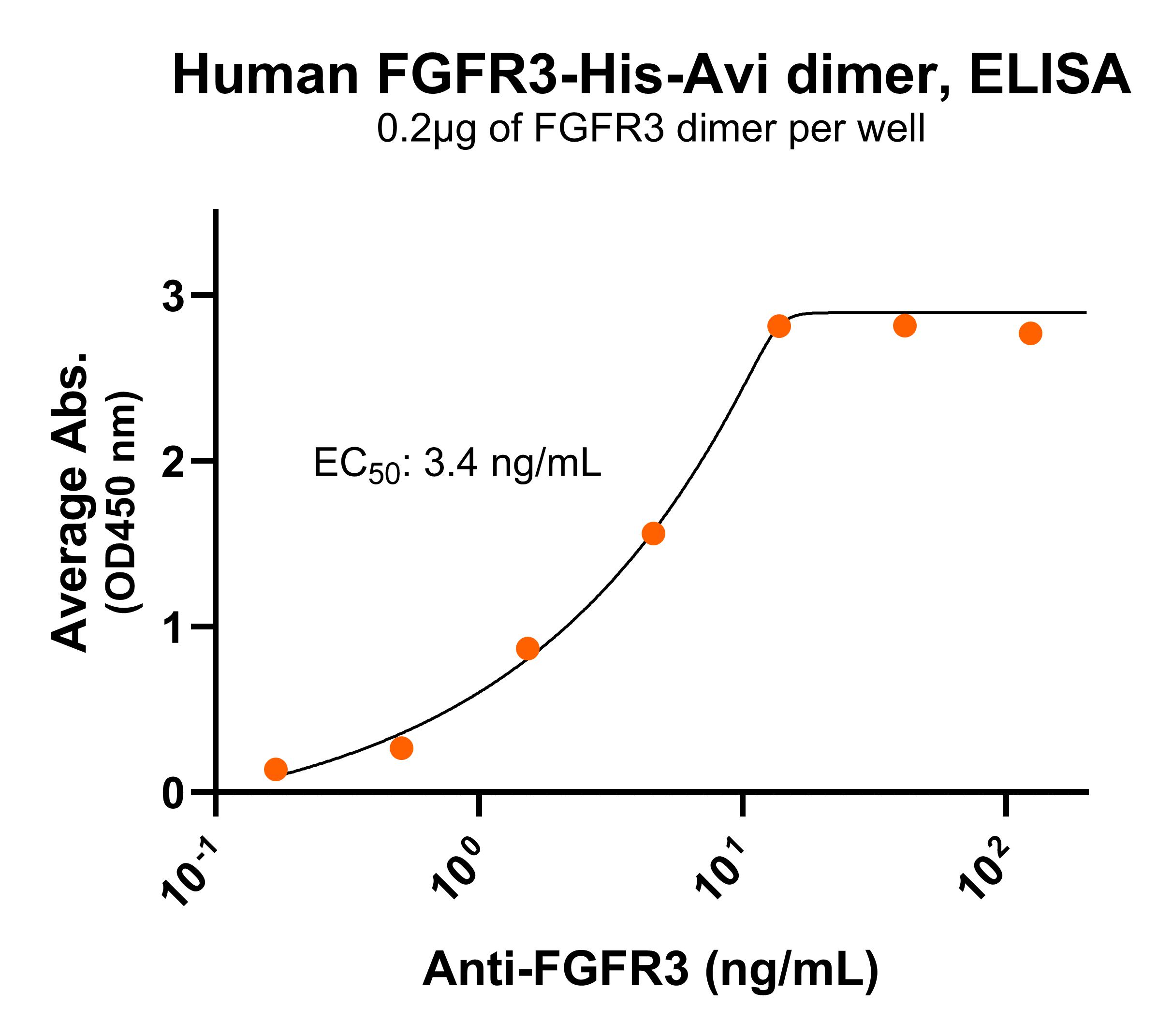

Immobilized human FGFR3-His-Avi protein dimer (CSP-25131-03) at 2 μg/mL (100 μL/well) can bind anti-human FGFR3 monoclonal antibody with half maximal effective concentration (EC50) range of 1.7-6.7 ng/mL (QC tested).

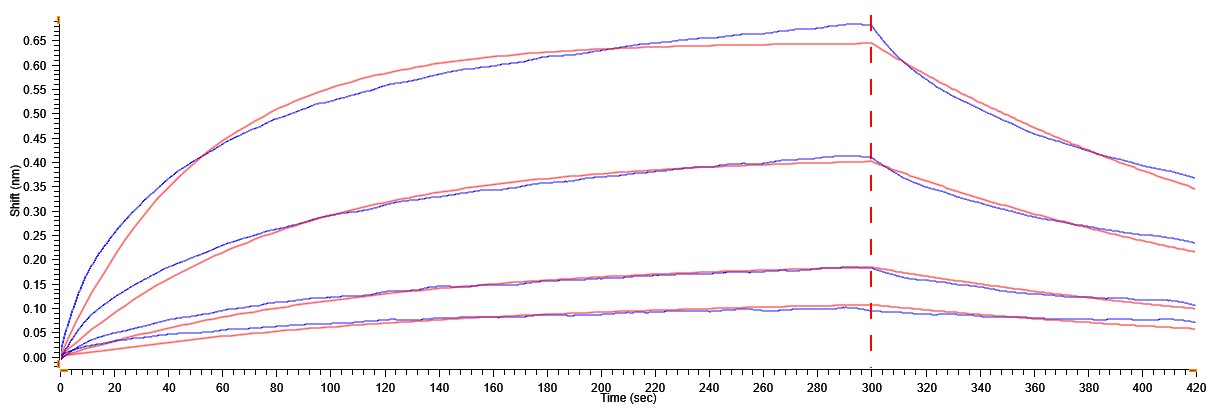

Human FGFR3 protein dimer , His-Avi tag (Cat. No. CSP-25131-03) on a NiNTA probe can bind human FGF-1 ligand with a KD of 138.5-554 nM as determined by BLI.

Bioactive, Human FGFR3 Protein Dimer, His-Avi Tag

Product Category: Growth factor receptor

Product Code: CSP-25131-03
Expression Host: HEK293T
Verified Applications: ELISA for FGFR3-specific antibody binding assays and BLI for fibroblast growth factor 1 (FGF-1) ligand protein binding assays.
Suggested Applications: SPR for FGFR3-specific antibody and FGF-1 protein binding assays. Animal immunization, RUO.
Purity: Greater than 90% dimer form as determined by SDS-PAGE under non-reducing condition
Amino Acid Range: E23-G375

For Research Use Only (RUO)

Add to Quote

Ready to buy now?
Email us at [email protected] and we’ll help you place your order directly.

Formulation: 0.22μm filtered PBS, pH 7.4
Shipping: Frozen Dry Ice
Storage: -80’C

Datasheet

MSDS

Human fibroblast growth factor receptor 3 (FGFR3) is a cell surface receptor belonging to the immunoglobulin superfamily functioning as a receptor tyrosine kinase (RTK). FGFR3 can form ligand-dependent and ligand-independent dimers. The recombinant FGFR3 dimer protein (CSP-25131-03) is a cis-homodimer (cis-dimer) and contains a FGFR3 extracellular domain (UniProt# P22607, amino acids Glu23-Gly375) fused with a proprietary cis-dimer motif followed by a tandem His-Avi tag at the C-terminus. This dimeric protein is expressed in HEK293T cells. The recombinant human FGFR3 dimer protein is bioactive and can bind to fibroblast growth factor 1 (FGF-1). It also binds FGFR3-specific antibodies. This FGFR3 dimer can be used as an antigen for in vitro assays and antibody screening, and as an immunogen for immunization to generate antibodies targeting more conformational epitopes.
Product Name: FGFR3
UniProt #: P22607
Predicted Molecular Weight: 96 kDa
SDS PAGE Molecular Weight: The migration range of the dimer protein with glycosylation under non-reducing condition is ~190 kDa on SDS PAGE.
Protein Construct: FGFR3 dimer protein contains a FGFR3 extracellular domainfused with a proprietary cis-dimer motif followed by a tandem His-Avi tag at the C-terminus.

Background and Alternate Names

Human fibroblast growth factor receptor 3 (FGFR3) is a cell surface receptor belonging to the immunoglobulin superfamily and a transmembrane receptor tyrosine kinase (RTK) that belongs to the FGFR family. FGFR3 is also known as ACH, cluster of differentiation 333 (CD333), CEK2, HSFGFR3EX, and JTK4. FGFR3 contains an extracellular domain with three immunoglobulin-like (Ig-like) subdomains (D1, D2 and D3), followed by a transmembrane, and an intracellular domain. Dimerization of FGFRs is necessary for activation and they can homodimerize and heterodimerize in both the presence and absence of ligand. FGFRs bind fibroblast growth factors (FGFs) leading to phosphorylation and triggering signaling cascades. FGFR3 is involved in diseases including achondroplasia, hypochondroplasia, and bladder cancer. Therefore, a recombinant protein mimicking the FGFR3 dimer conformation can be critical for cancer therapeutic discovery.

Alternate Names: ACH, cluster of differentiation 333, CD333, CEK2, HSFGFR3EX, JTK4
