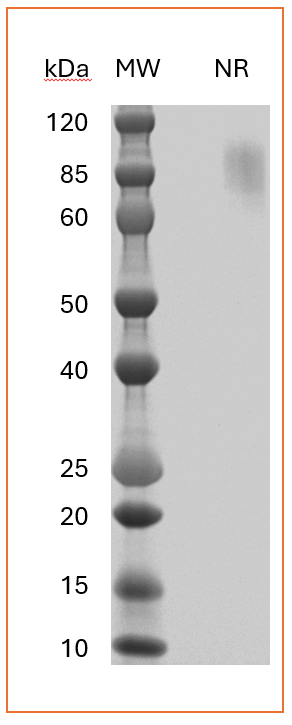

MW: Molecular Weight marker reduced condition NR: TIGIT dimer under non-reducing condition

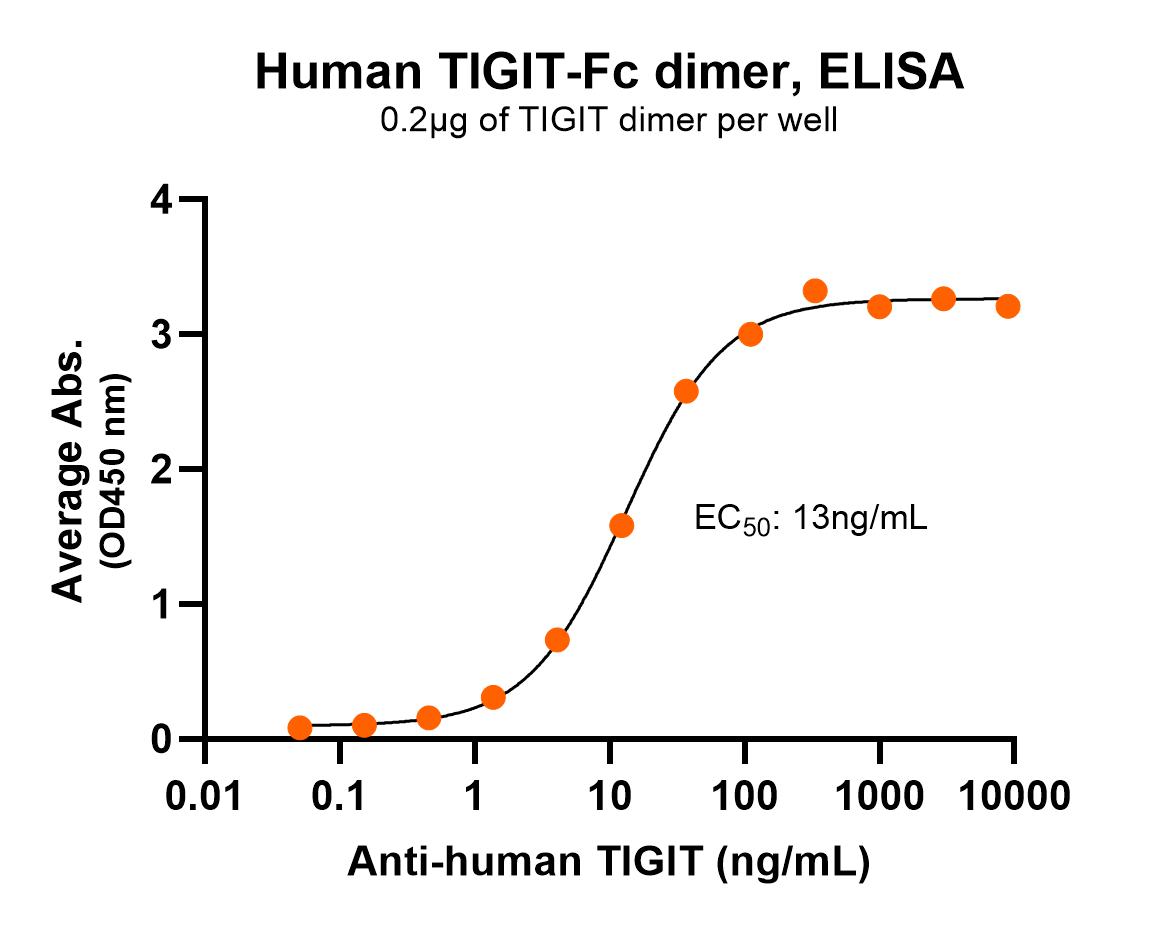

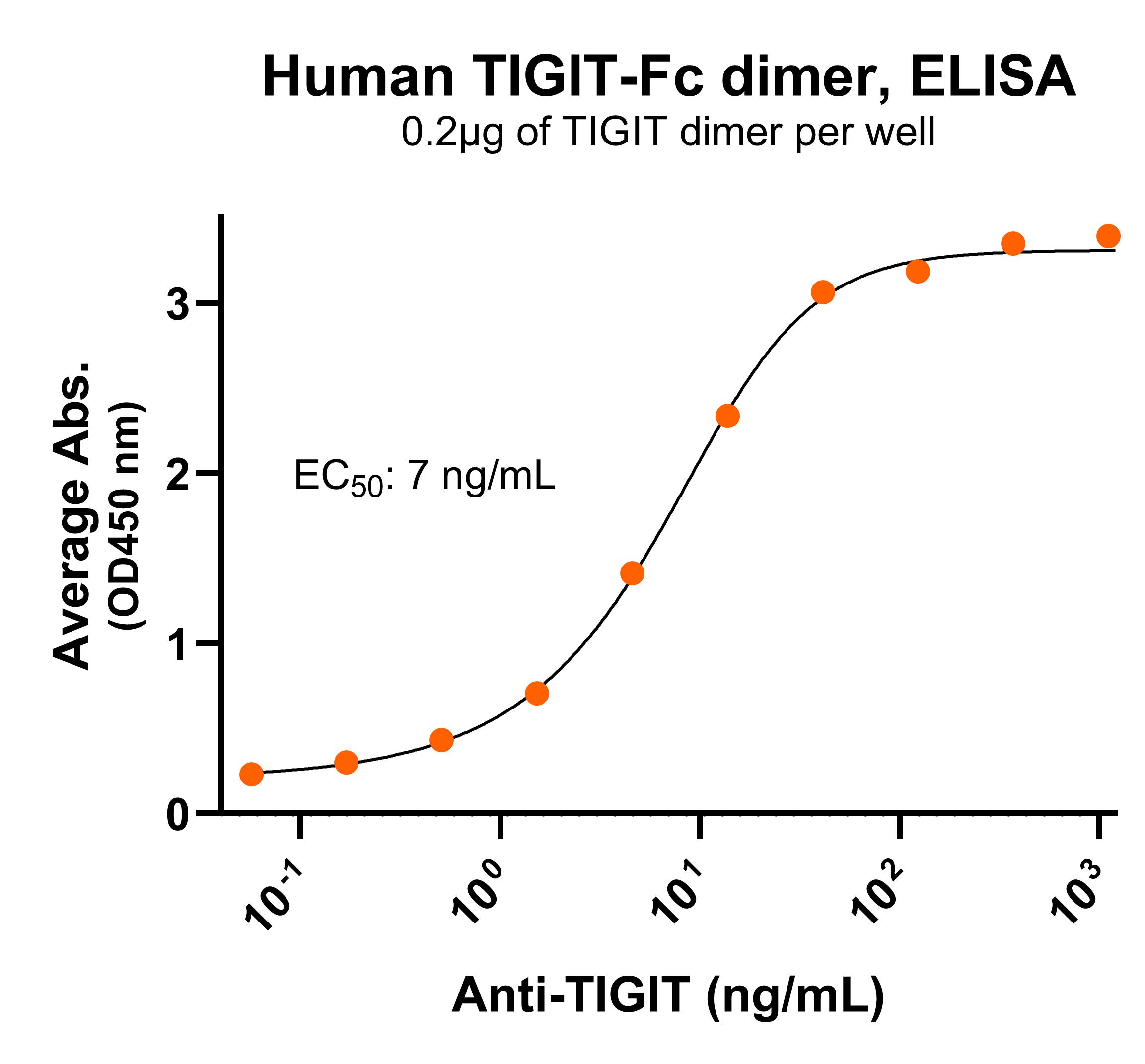

Immobilize TIGIT-Fc dimer protein (Cat. No. CSP-24028) at 2 μg/mL (100 μL/well) can bind anti-human TIGIT monoclonal antibody with half maximal effective concentration (EC50) range of 6.27-25.07 ng/mL (QC tested).

Human TIGIT Protein Dimer, Fc Tag

Immune checkpoint

Product Code: CSP-24028

Expression Host: HEK293T

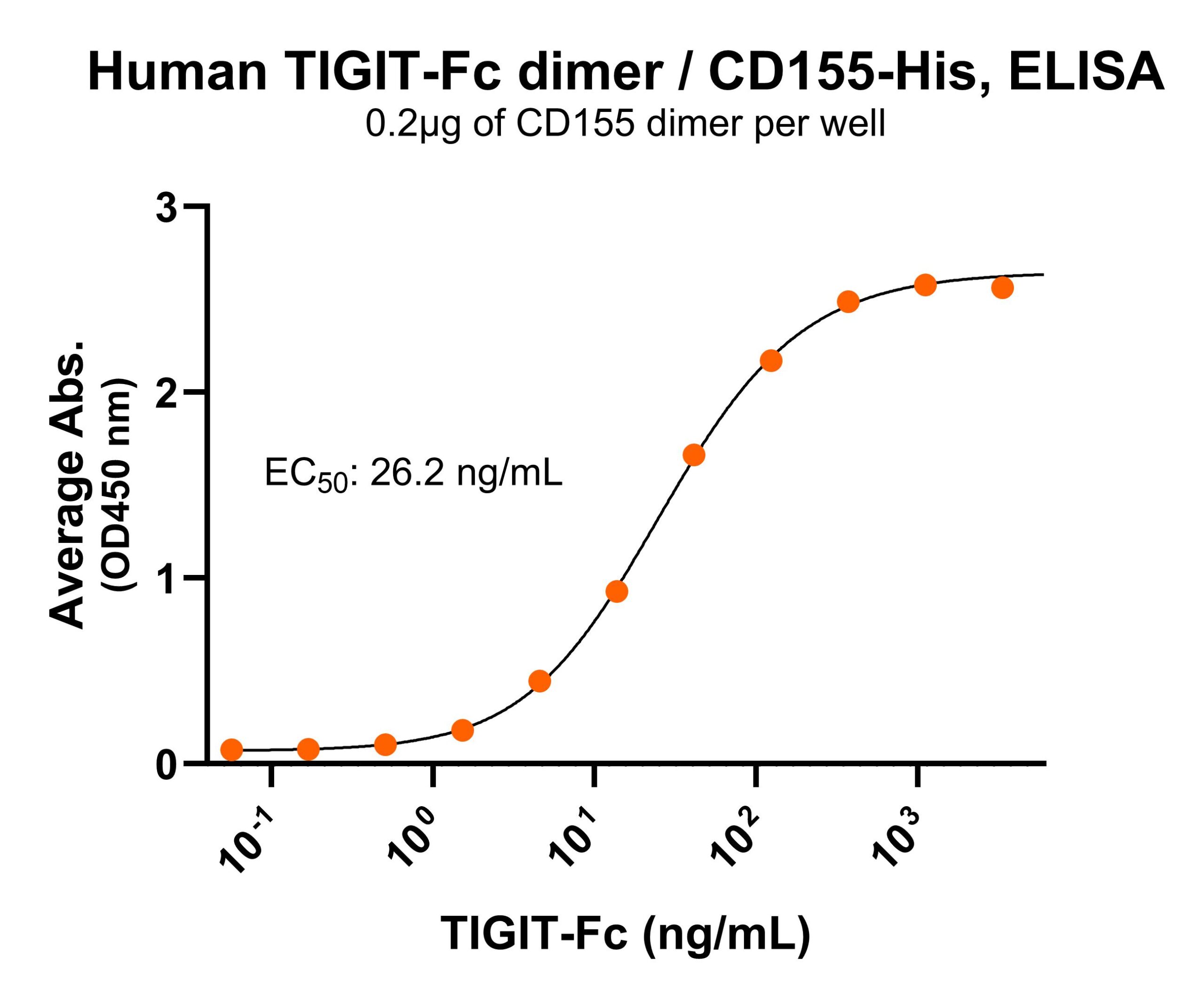

Verified Applications: ELISA for TIGIT-specific antibody, Nectin-4 ligand protein and CD155 receptor protein binding assays.

Suggested Applications: SPR & BLI for TIGIT-specific antibody, Nectin-4 ligand protein and CD155 receptor protein binding assays. Animal immunization, RUO.

Purity: Greater than 90% dimer form as determined by SDS-PAGE under non-reducing condition

Amino Acid Range: M22-P141

For Research Use Only (RUO)

Quantity

Clear

Add to Quote

Ready to buy now?
Email us at [email protected] and we’ll help you place your order directly.

Formulation: 0.22μm filtered PBS, pH 7.4

Shipping: Frozen Dry Ice

Storage: -80’C

Datasheet

MSDS

Human TIGIT (T-cell immunoreceptor with Ig and ITIM domains) is also known as VSIG9, VSTM3. TIGIT protein dimer (CSP-24028) and contains a TIGIT extracellular domain (amino acids Met22-Phe141, UniProt# Q495A1) with a homodimer Fc tag at the C-terminus. This protein is expressed in HEK293 cells. The TIGIT-Fc dimer protein is bioactive and can bind to Nectin-4. It also binds to TIGIT-specific antibodies. This TIGIT dimer can be used as an antigen for in vitro assays and antibody screening, targeting more conformations epitopes.

Product Name: TIGIT

UniProt #: Q495A1

Predicted Molecular Weight: 104 kDa

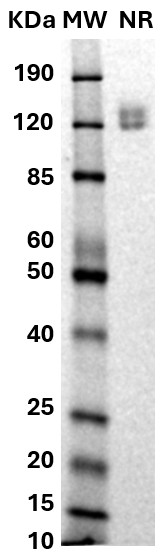

SDS PAGE Molecular Weight: The migration range of the dimer under non-reducing condition is 85-150 kDa on SDS PAGE.

Protein Construct: TIGIT protein dimer contains a TIGIT extracellular domainwith a homodimer Fc tag at the C-terminus.

Background and Alternate Names

Human TIGIT (T-cell immunoreceptor with Ig and ITIM domains) is also known as VSIG9 (V-set and immunoglobulin domain-containing protein 9), VSTM3 (V-set and transmembrane domain-containing protein 3). TIGIT is a type I membrane protein containing an immunoglobulin variable (Ig-V) domain, a transmembrane domain and cytoplasmic domain. TIGIT is an immune receptor present on peripheral memory and regulatory CD4+ T cells and natural killer (NK) cells. TIGIT binds to CD155 (the poliovirus receptor, PVR) with high affinity and binds to CD112 (PVRL2) with lower affinity. Nectin-4 is also a ligand for TIGIT.

Human TIGIT Protein Dimer, Fc Tag

Immune checkpoint

Datasheet

MSDS

Background and Alternate Names

Alternate Names: VSIG9, VSTM3
