Bioactive, Human CXCR4 Full Length Protein, Displayed on Nanoparticles

Product CodeCMP-24005
Expression HostHEK293T
Verified ApplicationsELISA for CXCR4-specific antibody binding assays.
Suggested ApplicationsAnimal immunization, RUO.
Amino Acid RangeMet1-Ser352

For Research Use Only

Price: 550.00

Price: $900.00

Price: $1,150.00

Price: $2,200.00

Price: $7,040.00

Anti-human CXCR4 Antibody Binding
Human CXCR4 Full Length ELISA
Click to enlarge

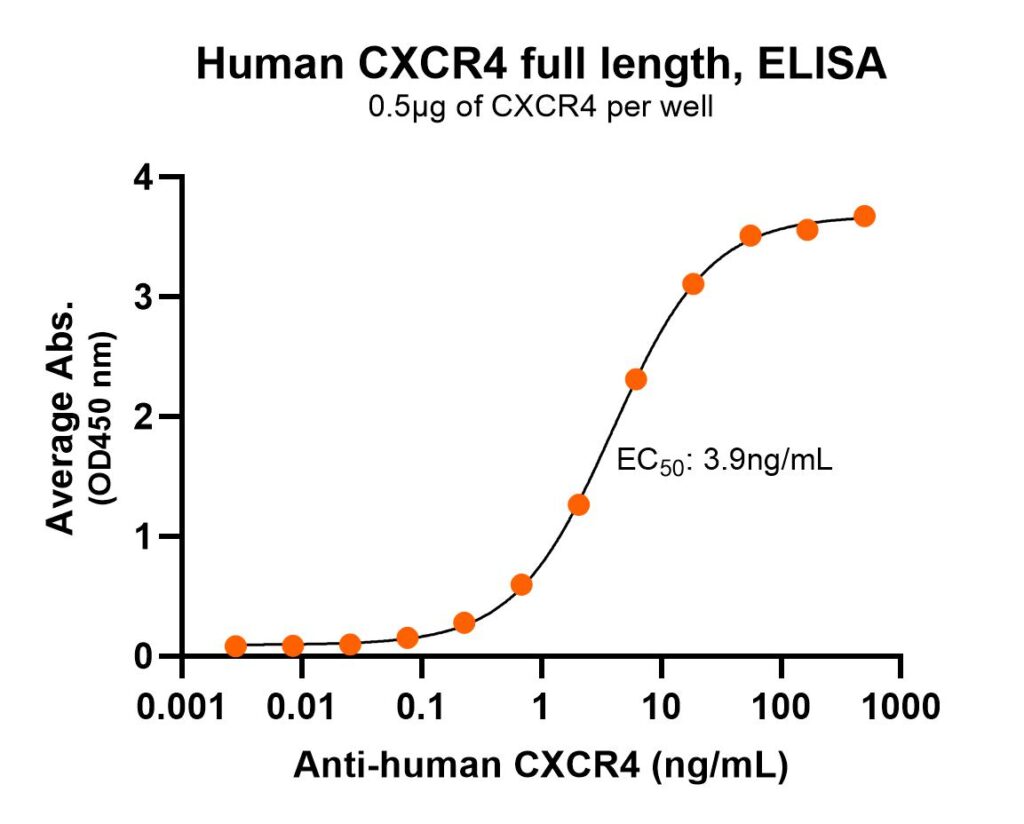

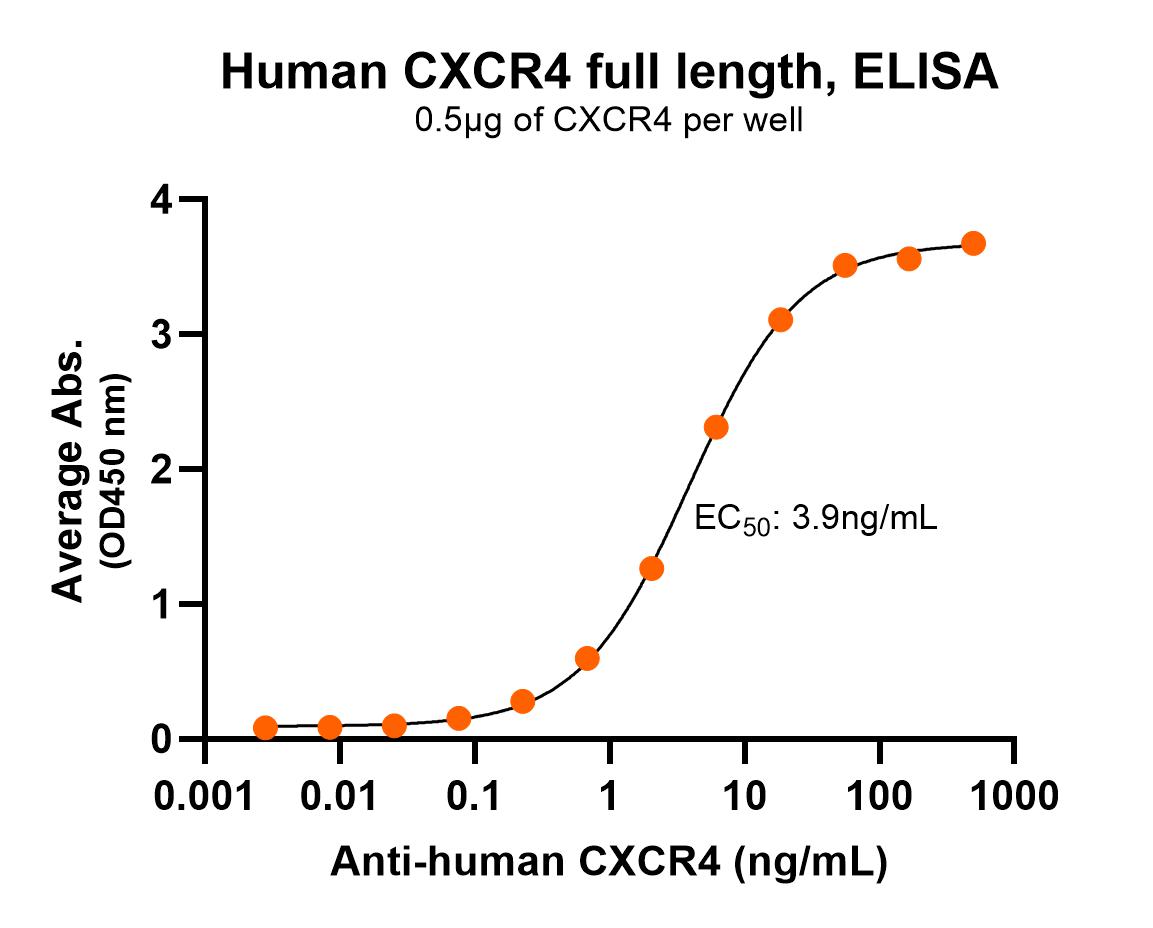

Immobilized human CXCR4 VLP (Cat. No. CMP-24005) at 5 μg/mL (100 μL/well) can bind anti-human CXCR4 monoclonal antibody with EC50 range of 2.3-9.19 ng/mL (QC tested).

Human CXCR4 Full Length,
DLS
Human CXCR4 Full Length DLS
Click to enlarge

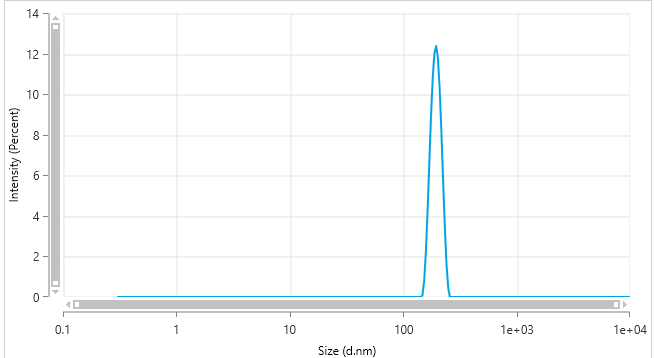

The mean peak diameter (nm) of the full length CXCR4 displayed on nanoparticles is 185.3 with a range of 161.3-203.5 with more than 95% intensity as determined by dynamic light scattering (DLS).

Specifications

Protein Name: Human CXCR4

UniProt #: P61073

Protein Construct: The human CXCR4 full length protein (amino acids Met1-Ser352) is displayed on nanoparticles and expressed in HEK293T cells.

Formulation: 0.2μm filtered PBS, pH 7.4, no preservatives
Shipping: Frozen Dry Ice
Storage: -80C

Human CXCR4 (C-X-C motif chemokine receptor 4) is a receptor for chemokine CXCL12 and co-receptor for HIV-1 envelope glycoprotein (Env), also known as FB22, HM89, LAP3, LCR1, NPYR, WHIM, CD184, LAP-3, LESTR, NPY3R, NPYRL, WHIMS, HSY3RR, NPYY3R, WHIMS1, and D2S201E. CXCR4 (CMP-24005) is a G protein-coupled receptor (GPCR) with seven transmembrane domains. The human CXCR4 full length protein (amino acids Met1-Ser352; UniProt# P61073), displayed on nanoparticles (CMP-24005) mimics the native protein conformation on the cell surface. The CXCR4 nanoparticle (CXCR4 CMP) is expressed in HEK293 cells. The CXCR4 CMP has potent binding to its ligands CXCL12 and HIV-1 Env, and the CXCR4-specific antibodies.

Background

C-X-C chemokine receptor type 4 (CXCR4) is also known as CD184, D2S201E, FB22, HM89, HSY3RR, LAP3, LCR1, LESTR, NPY3R, NPYR, NPYRL, NPYY3R or WHIM. CXCR-4 is a G protein-coupled receptor (GPCR) for the C-X-C motif chemokine 12 (CXCL12), also known as stromal cell-derived factor 1 (SDF-1). CXCR4 also acts as a co-receptor for HIV infection.

Alternate Names: FB22, HM89, LAP3, LCR1, NPYR, WHIM, CD184, LAP-3, LESTR, NPY3R, NPYRL, WHIMS, HSY3RR, NPYY3R, WHIMS1, and D2S201E
