CMP™ Technology Platform

Conigen Membrane Proteins Mimicking Native Conformations Displayed on Virus-Like Nanoparticles

The CMP technology platform produces native conformational membrane proteins by using the self-assembling and then budding functions of the viral structural proteins.

Complex membrane proteins are in a conformationally intact, stabilized state in their native lipid bilayer mimicking their conformation on the cell plasma membrane. Membrane protein expressing nanoparticles are used for in vitro bioactivity assays, in vivo animal immunizations and for biophysical, structural analysis.

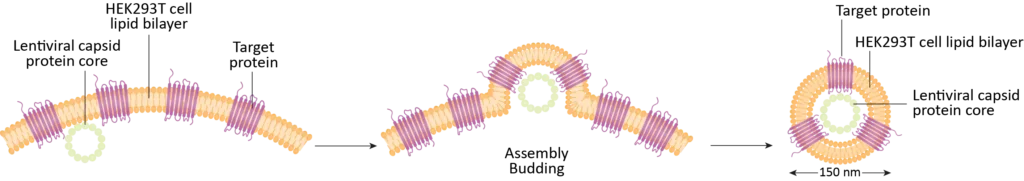

cell assembly budding

Combining multiple proprietary protein engineering techniques for:

  • Higher density: Enhance cell-surface expression to produce nanoparticles with higher density multipass membrane protein molecules
  • Better immunogenicity: Incorporate immune-engaging elements for immunogen applications
  • Functionality: Maintain membrane protein bioactivities via design considerations

Why are new antigen and immunogen formats for complex membrane proteins needed?

Membrane proteins embedded within lipid bilayer-based cell plasma membranes make up large portions of human proteome

Receptors, transporters, ion channels and enzymes related to cell membranes mediate interactions between cells and their environment

More than 60% of the current drugs target membrane proteins

Challenges of working with complex membrane proteins

Membrane proteins are not typically abundant on the cell surface making them very difficult to purify and characterize

Membrane proteins are structurally complex, taking on various conformational forms

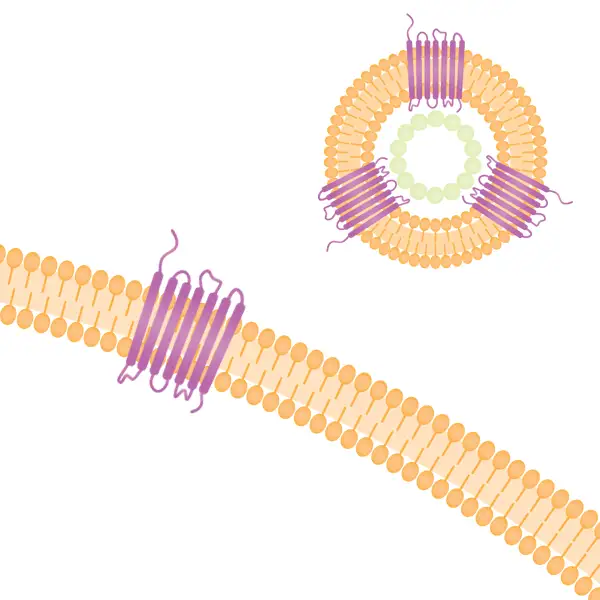

single-transmembrane

Single transmembrane domain

4-transmembrane

4-transmembrane domains

7-transmembrane

7-transmembrane domains

Categories of complex membrane proteins can be expressed using the CMP technology platform: GPCRs, ion channels, immuno-oncology targets, viral envelopes

CMP Applications

Immunogens to:

  • Generate antibodies for translational research and therapeutic antibody discovery



As a lipid-bilayer-based antigen format for:

  • Screening for binders and analyze affinities
  • Biophysical and structural investigations of complex membrane proteins

CMP Advantages

  • More natively folded proteins in the cellular membrane bilayer without further processing
  • Eliciting antibodies that better target conformational epitopes
  • Higher antigen dosage per immunization
  • Reduced number of host cell derived proteins
  • More immunogenic

Ready-to-go membrane proteins: antigen and immunogen applications

ProteinProtein FamilyDescriptionProduct CodeQuantities
Human CXCR4GPCRFull length human CXCR4 protein (Met1 –Ser352) on nanoparticles;
Accession# P61073
CMP-2400520µg, 50µg, 100µg, 250µg
Human CXCR5GPCRFull length human CXCR5 protein (Met1 –Phe372) on nanoparticles;
Accession# P32302
CMP-2401420µg, 50µg, 100µg, 250µg
Human CCR4GPCRFull length human CCR4 protein (Met1 – Leu360 on nanoparticles;
Accession# P51679
CMP-2401320µg, 50µg, 100µg, 250µg
Human CCR9GPCRFull length human CCR9 protein (Met1 – Leu369) on nanoparticles;
Accession# P51686
CMP-2401220µg, 50µg, 100µg, 250µg
Human Claudin 18.1Claudin FamilyFull length human Claudin 18.1 protein (Met1 – Val261) on nanoparticles;
Accession# P56856
CMP-2400320µg, 50µg, 100µg, 250µg
Human Claudin 18.2Claudin FamilyFull length human Claudin 18.2 protein (Met1 – Val261) on nanoparticles;
Accession# P56856-2
CMP-2400120µg, 50µg, 100µg, 250µg
Nanoparticle ControlControlCMP-2400H20µg, 50µg, 100µg, 250µg

Example Membrane Protein Nanoparticle: CXCR4 (7-transmembrane domain GPCR)

The cell surface C-X-C chemokine receptor 4 (CXCR4) is a seven transmembrane domain G protein-coupled receptor (GPCR), expressed on white blood cells and hematopoetic stem cells. CXCL12 is the endogenous chemokine ligand of CXCR4, and the CXCL12/CXCR4 complex activates various signaling pathways promoting chemotaxis, adhesion and migration, cell proliferation and survival. This receptor also acts with the CD4 protein as a co-receptor to mediate HIV entry into cells.

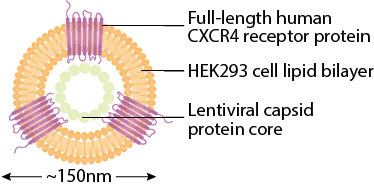

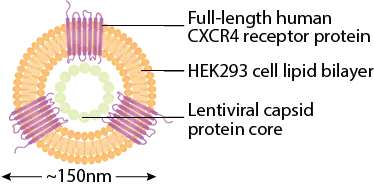

CMP technology platform designed CXCR4 nanoparticle
  • Human full-length protein anchored in the lipid bilayer produced by HEK293 cells
  • Lentiviral capsid protein core without viral genetic materials
  • Spherical nanoparticles with diameter ~150nm
  • Bioactive CXCR4 molecules bind to ligand CXCL12 and anti-CXCR4 antibodies

CXCR4-CMP bioactivity measurements: ELISA data

CXCR4-CMP is bioactive for chemokine CXCL12 ligand binding

cmp-data-1

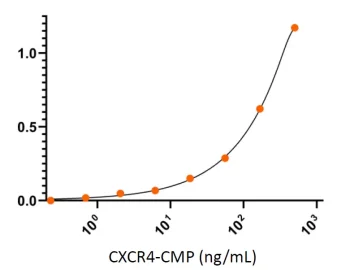

Chemokine CXCL12 ligand binding to the engineered CMP with the embedded full length CXCR4 (green), indicating the accurate native conformation of bioactive CXCR4-CMP

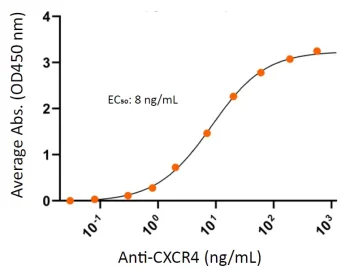

CXCR4-CMP has the right conformation for anti-CXCR4 antibody potent binding EC50 = 7.09±0.62 ng/ml

cmp-data-2

CXCR4-specific antibody binding to engineered CMP with the embedded full length CXCR4 (green), indicating the accurate engineering of the bioactive CXCR4-CMP

FAQs

The nanoparticle stability is comparable to the stability of other purified proteins. Nanoparticles are stable for at least 6 month when frozen (-70°C) or at least 14 days at 4°C. Like most lipid structures, nanoparticles will be disrupted by detergents. Nanoparticle suspensions will appear as an opaque solution and should be gently mixed before use. Excessive vortexing, dilution, and filtration of nanoparticles should be avoided to minimize sample loss. More information can be found on the datasheet.

The nanoparticles can readily be modified during the production and purification process. Please contact Conigen to request biotinylated or fluorescently labeled molecules.

As nanoparticles bud from the cell surface, they contain high-copy numbers of specific target membrane protein of interest in addition to membrane proteins from the cells that are used for production. The effects of these nonspecific membrane proteins are minimized by the overexpression of the target membrane protein of interest. In your experimental set-up, Conigen recommends the following negative controls: alternative cell types, and the use of null nanoparticles that do not contain the target membrane protein of interest.

Generally, nanoparticles range in size (diameter) from approximately 100 to 300nm.

The Conigen validation process involves various analytical techniques for each batch, including techniques such as dynamic light scatter, Western blot, and ELISA

Please contact Conigen at [email protected] to place an order via PO.

Please contact Conigen using the Consultation request form.

The turnaround time of custom orders is approximately 6-8 weeks from sequence to product. Please contact Conigen using the Consultation request form for more information.
